Smart object and technical information directly into the plan.

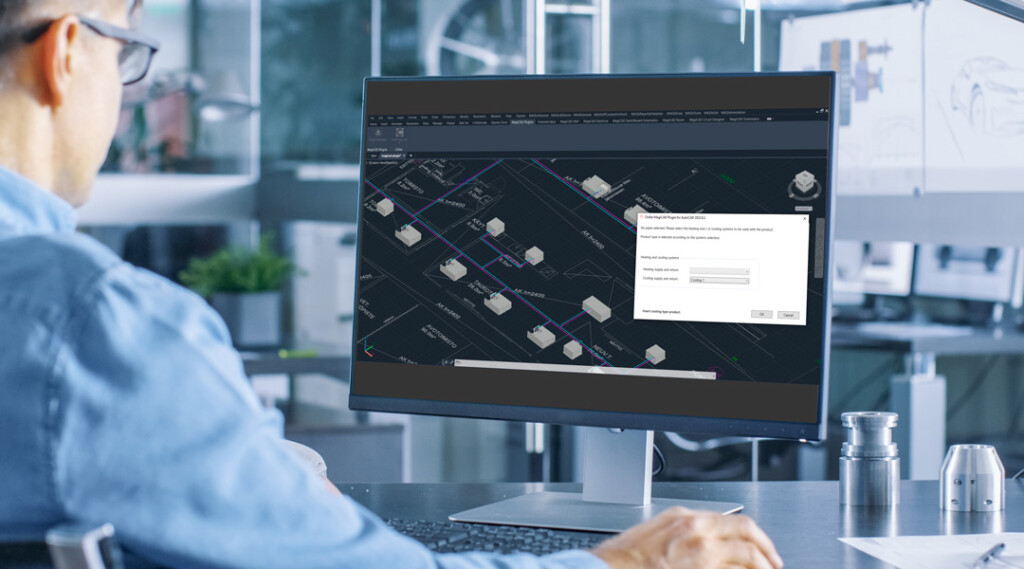

The Option Selection Program integrates seamlessly with Box and BLOCK into MagiCAD and Revit through the Chiller Plugin. The Selection Program opens as a pop-up in MagiCAD or Revit, allowing you to make product selections in the usual way. After making the selection, the plugin provides the correct objects and technical information needed for network sizing and BIM.

Download the plugin here>>

BIM library

MagiCloud objects integrated into the selection program. Fan coil unit MagiCloud objects are integrated into the selection program. The download link for the objects is found in the technical selection report of the selection program. Note! Choose the corresponding machine size in MagiCloud’s ”Variants” drop-down menu, e.g. BOX 160-2.

Learn more about the integrated service in the Option Selection Program.

Follow these steps:

1. Make the desired equipment selection
2. Generate a report
3. Download the technical selection (PDF)
4. Click the link at the bottom of the technical selection report (PDF) to go directly to the correct MagiCloud object

The entire BIM library is also available directly from MagiCloud or MagiCAD.

Connect to the BIM-library here>>
